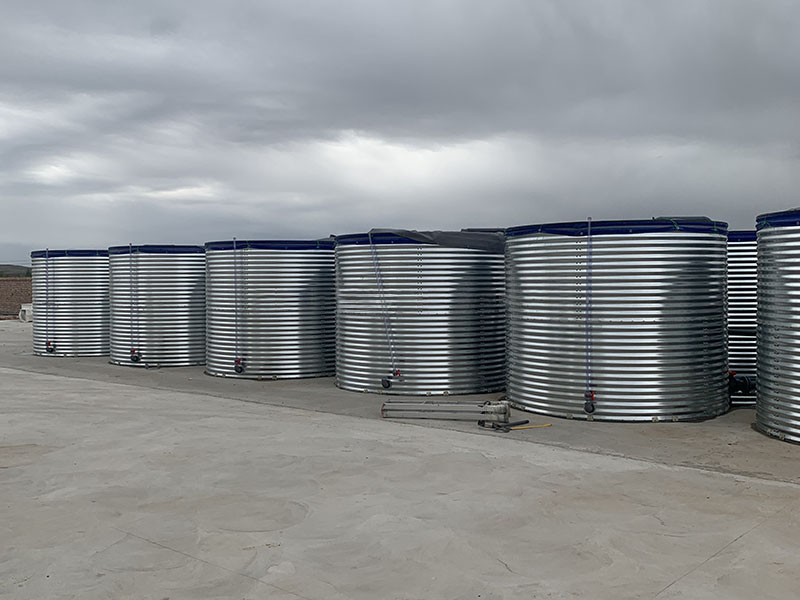

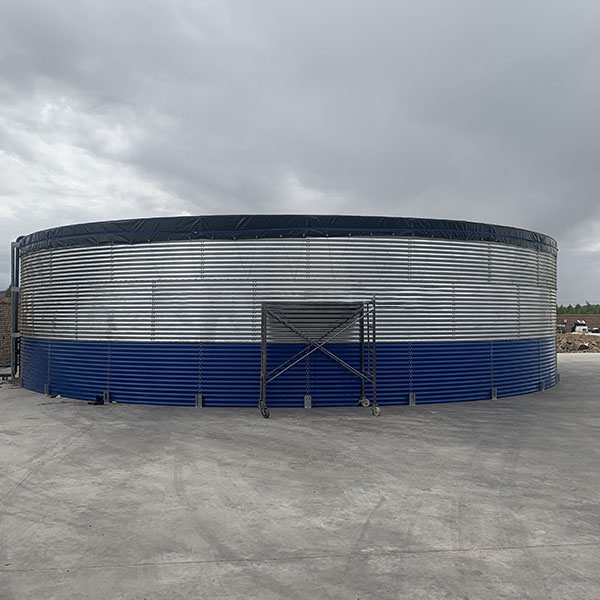

What is Corrugated Steel Water Tank?

The circular corrugated sectional metal steel water tank has two types according to raw material.

One is galvanized steel water tank.

One is zincalume steel water tank.

Above two water tanks are called water silos which is a cheaper option for water storing.Due to less metal parts with same capacity, it has the advantage of less price and easier installation.The tank is assembled by two main parts combined corrugated sheet for wall and food-grade tarpaulin or PVC inside for loading water.

The cylindrical corrugated metal steel water tank has a lifespan over 20 years which is an more economical, efficient and safer large water storage tank. It is suitable for all kinds of irrigation and domestic water and potable water tank, such as greenhouse irrigation, greenhouse rainwater collecting, temporary water storage at construction sites etc.

   GET A QUOTE

Advantages of Corrugated Steel Water Tank

  1. Price is better than concrete water tank.
  2. It is assembled by corrugated sheets,much more easier to install.
  3. It is detachabe and movable to get multiple using.
  4. It is rust-resistant and over 20 years of lifespan.
  5. Transportation is so competitive due to pieces loading.
  6. Wide application for drinking water and fishing breeding and farming etc.

Corrugated Steel Water Tank Type

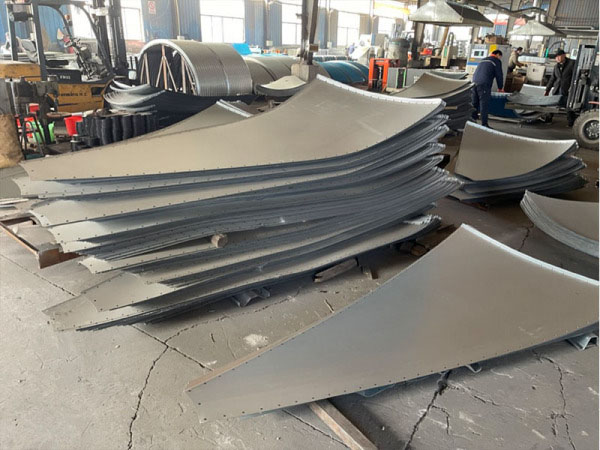

Steel Dome Roof Water Tank

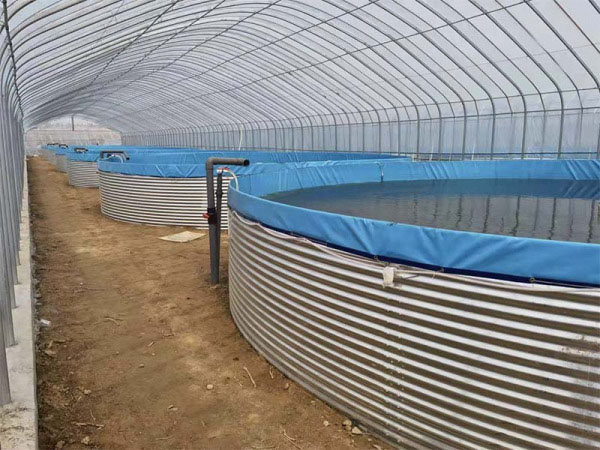

Open Top Water Tank

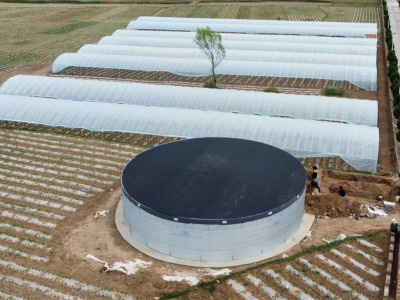

PVC Roof Water Tank

Diameter (m) Height (m) Capacity (m3) Diameter (m) Height (m) Capacity (m3) Diameter (m) Height (m) Capacity (m3) Diameter (m) Height (m) Capacity (m3)
3 1.43 10.1 4 1.43 17.76 5 1.43 28.06 6 1.43 40
3 2.2 15.54 4 2.2 27.63 5 2.2 43.18 6 2.2 62
3 3.3 23.31 4 3.3 41.45 5 3.3 65 6 3.3 93
3 4.29 30.3 4 4.29 53.88 5 4.29 84 6 4.29 121
7 1.43 55 8 1.43 72 9 1.43 91 10 1.43 112
7 2.2 85 8 2.2 110 9 2.2 140 10 2.2 173
7 3.3 127 8 3.3 166 9 3.3 210 10 3.3 259
7 4.29 165 8 4.29 216 9 4.29 273 10 4.29 337
11 1.43 136 12 1.43 162 13 1.43 190 14 1.43 220
11 2.2 209 12 2.2 249 13 2.2 292 14 2.2 338
11 3.3 313 12 3.3 373 13 3.3 438 14 3.3 508
11 4.29 407 12 4.29 485 13 4.29 569 14 4.29 660
15 1.43 253 16 1.43 287 17 1.43 324 18 1.43 364
15 2.2 389 16 2.2 442 17 2.2 499 18 2.2 560
15 3.3 583 16 3.3 663 17 3.3 749 18 3.3 839
15  4.29 758 16 4.29 862 17 4.29 973 18 4.29 1091
19 1.43 405 20 1.43 449 21 1.43 495 22 1.43 543
19 2.2 623 20 2.2 691 21 2.2 762 22 2.2 836
19 3.3 935 20 3.3 1036 21 3.3 1142 22 3.3 1254
19 4.29 1216 20 4.29 1347 21 4.29 1485 22 4.29 1630
23 1.43 594 24 1.43 647 25 1.43 702 26 1.43 759
23 2.2 914 24 2.2 995 25 2.2 1079 26 2.2 1167
23 3.3 1370 24 3.3 1492 25 3.3 1619 26 2.86 1518
23 4.29 1781 24 / / 25 / / 26 / /
27 1.43 818 28 1.43 880 29 1.43 994 30 1.43 1010
27 2.2 1259 28 2.2 1354 29 2.2 1452 30 2.2 1554
27 2.86 1637 28 2.86 1760 29 2.86 1700 30 2.86 2020

Corrugated Steel Water Tank Application

  1. Potable Water Storage
  2. Fire Protection
  3. Domestic Fire Tanks
  4. Commercial Fire Tanks
  5. Irrigation
  6. Rainwater Harvesting
  7. Storm Water Retention
  8. Wastewater
  9. Mining
  10. Agriculture
  11. Industrial Processing
  12. Aquaculture
  13. Thermal Storage
  14. Well Water Storage

Super HL Water Tank Always focuses on the corrugated steel water tank quality and service.

  1. We provide a detailed installation video.
  2. We offer customized service according to your round water tank requirement.
  3. Installation manual and HL patented design make the water tank stronger and more practical.

Connect to your next successful water tank project !
