What is Stainless Steel Water Tank
Stainless steel grades,such as the 316 or 304 types which are generally suitable for storing both cold and heat drinking waters.There are two connection ways including bolt-connection and welding connection.For welding one,it is connected through argon welding way and it is more fast to installation completion.Both two types stainless steel water tank could meet the high precise science and technology water storing or somewhere with strict water quality demands.In addition,stainless steel welding water tank is afraid of high chloride concentration water.Welding point will reduce the nickle content and lose the ability to prevent corrosion from high chloride water.
GET A QUOTETECHNICAL DATA
PANELS
- SURFACE DESIGN
- Rounded shape
- MATERIAL
- Food grade SS 304/2B
- Food grade SS 316
- SIZE & WEIGHT
- The size of stainless steel panels are produced by standard with 1*1 m, 1*0.5 m and 0.5*0.5 m.
- The panel thickness is depends on tank height.
- The maximum height available is 5 meters (Need add external reinforcement of I-beam for 5 m height).
- WATER TANK HEIGHT MATCHES PANEL THICKNESS.
- PHYSICAL PROPERTIES
| Height (m) |
Bottom Board (mm) |
Side 1 (mm) |
Side 2 (mm) |
Side 3 (mm) |
Side 4 (mm) |
Side 5 (mm) |
Side Top Board (mm) |
|---|---|---|---|---|---|---|---|
| 1 | 2.5 | 1.5 | 1.5 | ||||
| 1.5 | 2.5 | 1.5 | 1.5 | 1.5 | |||
| 2 | 2.5 | 2 | 1.5 | 1.5 | |||
| 2.5 | 3 | 2.5 | 2 | 1.5 | 1.5 | ||
| 3 | 3 | 2.5 | 2 | 1.5 | 1.5 | ||
| 3.5 | 3 | 2.5 | 2.5 | 2 | 1.5 | 1.5 | |
| 4 | 3 | 2.5 | 2.5 | 2 | 1.5 | 1.5 | |
| 4.5 | 4 | 3 | 3 | 2.5 | 2 | 1.5 | 1.5 |
| 5 | 4 | 3 | 3 | 2.5 | 2 | 1.5 | 1.5 |
| Physical properties | Standard requirement | Result |
|---|---|---|
| Tensile strength | ≥515 Mpa | 695 MPa |
| Yield strength | ≥205 Mpa | 309 MPa |
| Elongation | ≥40 % | 54 % |
| Hardness | ≤92 HRBS | 85 HRBS |

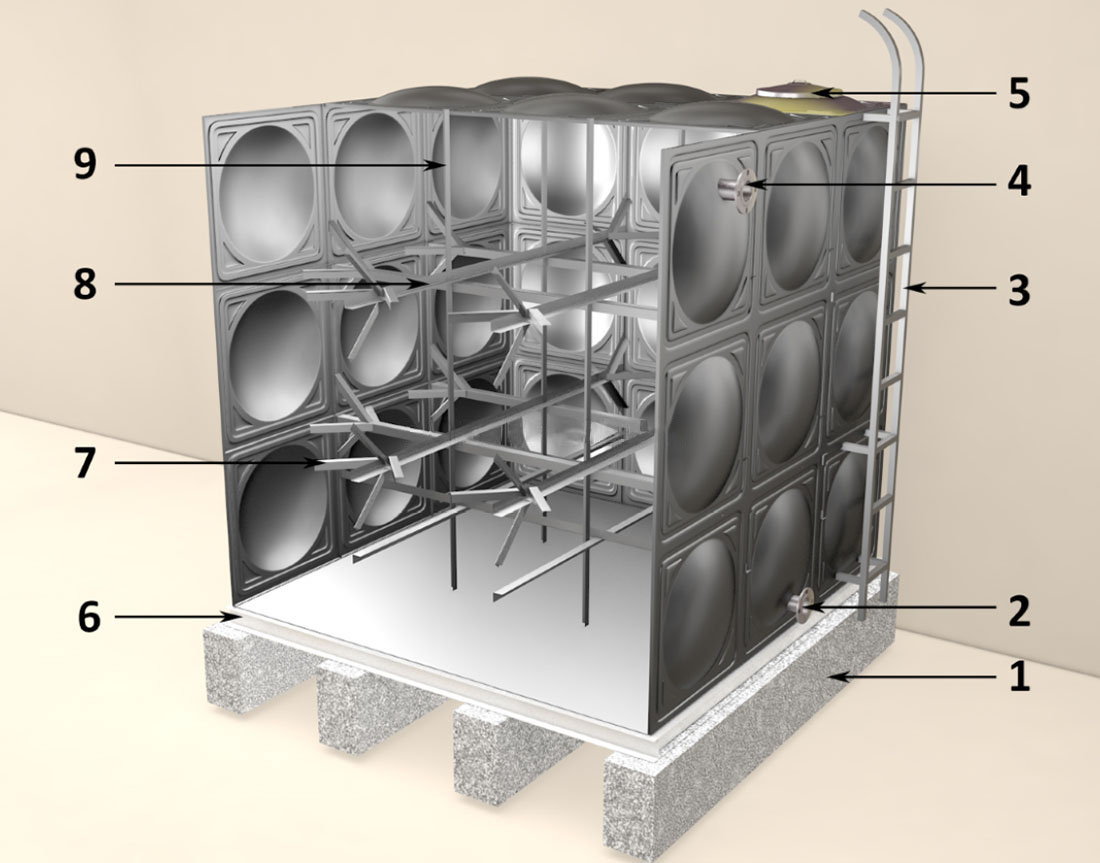

ACCESSORIES
- Concrete beam
- Outlet flange
- External ladder
- Inlet Flange
- Manhole
- C-channel
- Oblique short bar
- Horizontal tie rod
- Vertical support
| INTERNAL STRUCTURE—— | 1. Stainless steel 304/316 | |
|---|---|---|
| LADDER —— | 1.Stainless steel 304/316 | |
| BASE FRAME—— | 1. Painting | 2. Hot dipped galvanized |
| FLANGES—— | 1. Stainless steel 304/316 |
DESCRIPTION
- Stainless steel water tank usually in short of SS or SUS water tank which consists of three types of panels which is customizable from 0.125 m3-5000 m3.
- The water tank is usually set within 4 meters high,we have set the water tank height up to 6 meters already with high technology.
- Stainless steel water tank is easily loaded for light weight and usually packed in plywood case and loading most compare with other types of tanks.
- Stainless steel water tank warranty time is 18 months since shipped out factory or 12 months since installation,based on closed one.
- Stainless steel water tank can store many kinds of water,specially for high quality water,but always compromised to sea water or water with rich chloride.
FEATURES
- All hot dip galvanized materials and national standard.
- Panels consist of 1000 x 1000 mm,1000 x 500 mm,500 x 500 mm three types.
- Water tank could be assembled either welding connection or bolt connection.
- U-steel is optional between hot dip galvanized and painting.

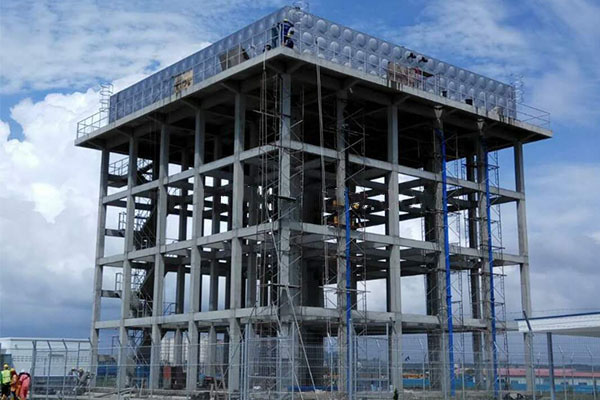

- It can be used overhead water tank and insulated water tank.
APPLICATION
What are water tanks widely used for?
- Potable Water Storage Tanks
- Agricultural Irrigation Tanks
- Septic Tanks and Sewage Tanks
- Distillation and Process Tanks
- Fire Reserve Storage Tanks,Swimming Pool Balance Tanks
- Hot Water Storage Tanks and Chemical Substance Storage Tanks
- Rain Water Harvesting Tanks,Well Water Tanks,Sea Water Tanks
- Reverse-Osmosis Water Tanks(water with high or low conductivity)
- Industrial Process Tanks,Chiller Water Tanks,Cooling Tower Water Tanks
DESIGN
- What is the stainless steel water tank used for,drinking or not?(Can not be used for storing sea water or high salt content water).
- What capacity of the water tank and how many flanges?
- Other details,please kindly let me know in advance.
- According to above information,we design the drawings for your reference.

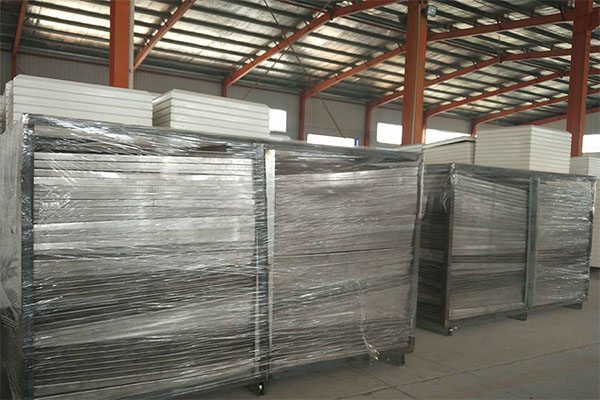

PACKING
With over 20 years factory manufacturing experience and five years of export experience,we designed and evolved packing a lot for delivery safety and most cost effective.
- Iron frame for GRP/FRP panels.
- Plywood cases for GRP/FRP panels and accessories.
- Pallet for GRP/FRP panels and accessories.
- Cartons and bags for small pieces of accessories.
- Each packing will be marked with special tags from factory (SUPER HL WATER TANK only),so it is easy to know which is which during water tank installation.
INSTALLATION
Technical support
- According to SS welding connection water tank capacity,our engineer will provide detailed drawing for your reference.
- Customers just need to provide concrete base according to our drawing.
- Our water tank quotation includes all panels and accessories and C-channel base and some spare parts.

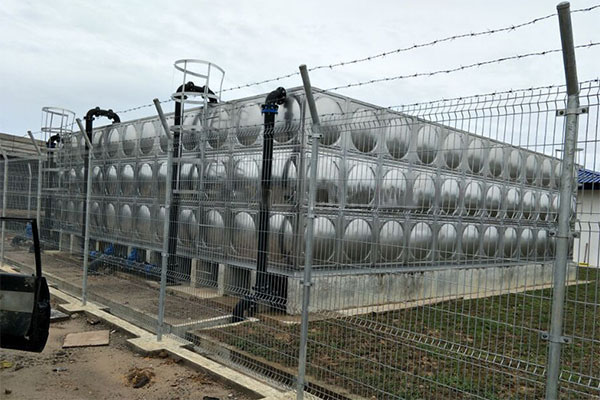

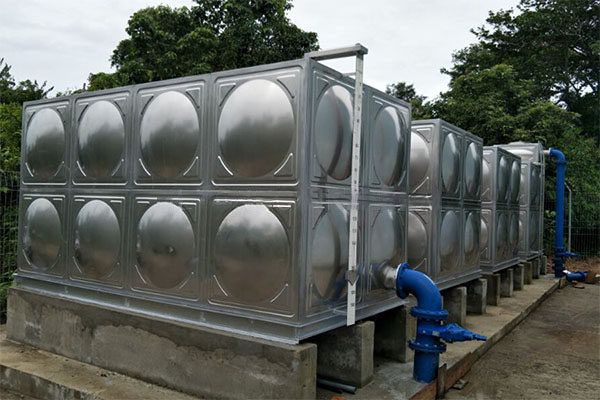

Stainless steel welding connection water tank installation video
ANTI-CORROSION
The raw material adopt pure stainless steel 304 or 316; it has excellent corrosion resistance.
POTABILITY
The stainless steel material can be implanted into the human body, it is very best healthy material for us.
RELIABLE QUALITY
Our raw material are all international famous brand. Tank life-span can be over 1/4 century.
CONVENIENT INSTALLATION
Factory precast panel is easy to assemble and disassemble, the construction drawing, installation video, and a series of complete installation plan will be provided.
SAVE SPACE
For argon arc welding type, all the welding process are handle from inside the tank, so there’s no need left space around of tank.
DOWNLOAD
PRODUCTION SCOPE
As over 20 years of water tank manufacturer,we have established 4 production
lines separately for GRP modular water tank,HDG water tank,Stainless steel
water tank,GSC underground water tank,which include 58 skilled engineers, 8
sets of molding pressure machines.
Except above water tank series,we could process and customize other SMC
products such as electric pole protection cases,farm planting SMC series.
