*Note:GSC is the abbreviation of Galvanized and Stainless steel Compound. This large water tank is our real national project, do not copy.
HL Water Tank Descriptions:
- GSC is the short of stainless steel panel and hot dip galvanized panel compound which consists of three types of panels which can customize capacity according local area.
- The water tank height is usually set within 4 meters,we have set the water tank height up to 6 meters with my engineer good design.

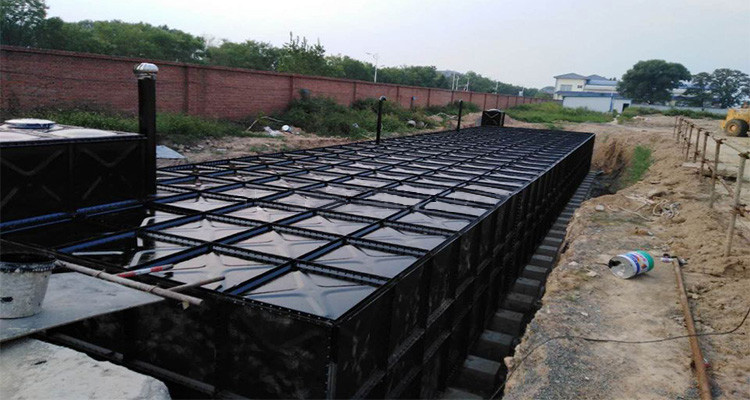

- GSC water tank structure is strong which can be used in underground and above ground used for storing firefighting,domestic water.
- GSC water tank warranty time is 18 months since shipped out factory or 12 months since installation,based on close one.
- GSC water tank mainly used in hospital,residence,campus,supermarket,airport,football ground,and somewhere lacking water.
HL GSC water tank features:
- All stainless and galvanized compound materials and national standard.
- Panels consist of 1000x1000mm,1000x500mm,500x500mm three types.
- Water tank uses the different panel thickness according to above table.
- U-steel is hot dip galvanized or painted into red color according to customer’s requirement.
- It is alternative to be insulated or not as choices
Water Tank Height VS board thickness
| Height (m) |
Bottom Board (mm) |
Side 1 (mm) |
Side 2 (mm) |
Side 3 (mm) |
Side 4 (mm) |
Side 5 (mm) |
Side Top Board (mm) |
|---|---|---|---|---|---|---|---|
| 1 | 3.5 | 3.5 | 3 | ||||
| 1.5 | 3.5 | 3.5 | 3.5 | 3 | |||
| 2 | 3.5 | 3.5 | 3.5 | 3 | |||
| 2.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3 | ||
| 3 | 3.5 | 3.5 | 3.5 | 3.5 | 3 | ||
| 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3 | |
| 4 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3 | |
| 4.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3 |
| 5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3 |
